Rohrlux surface mounted lamp series 37: 438 mm - 6 W - 501 Lm - 220~240 V

Product information "Rohrlux surface mounted lamp series 37: 438 mm - 6 W - 501 Lm - 220~240 V"

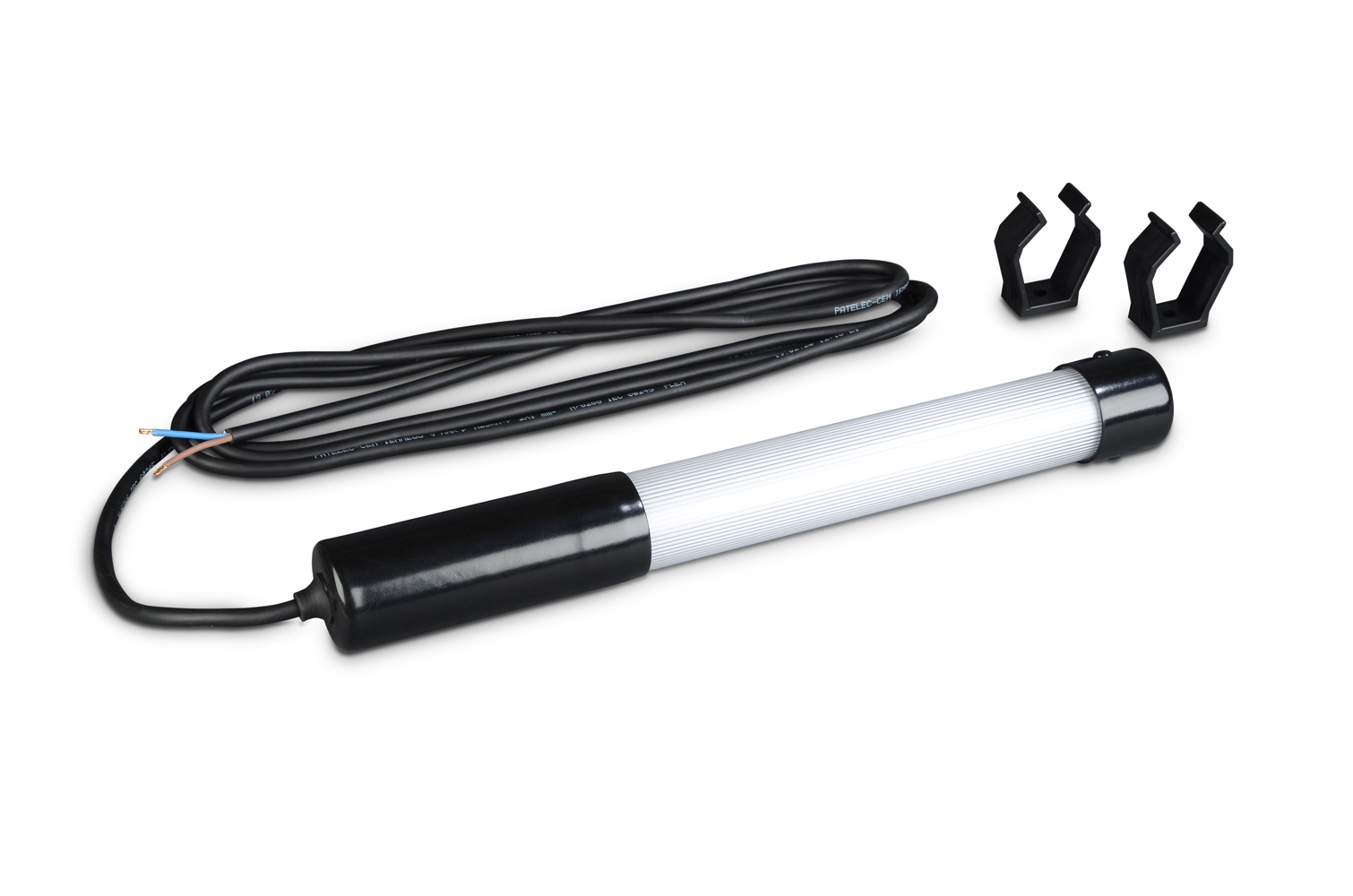

The Surface Mount Luminaire Series 37 combines bright, uniform light with a compact design. It is very versatile in use.
The protective tube is made of robust, prismatic PMMA with a diameter of 38 mm.
The luminaire diameter is 42 mm at the immersion handle and cap.

With a beam angle of 130°, the LEDs used illuminate even larger working areas very homogeneously. The light output is extremely uniform thanks to a diffuse foil. The glare effect is also largely eliminated by the foil.

With 501 lm the lamp is very bright in relation to the compact dimensions.

The slim housing is impact resistant according to IK 07 and splash-proof with IP 54.
The luminaire is delivered with 2 plastic clips and a 3 m supply cable made of H05RN-F 2X1 mm² (FLEX) with crimp sleeves (special length on request).

Technical data:
  • Length 438 mm Diameter 42 mm
  • Driver/LED unit 220-240 Volt AC 50-60 Hz., with 16 high-power LEDs
  • Light output: 501 lumen = 507 lux at 0.5 m
  • Beam angle 130° Color temperature 4000 K
  • This product contains a light source of energy efficiency class "E" (EPREL registration number: 868600)
  • Protective tube PMMA crystal clear prismatic with diffuser foil
  • Supply cable 3000 mm H05RN-F 2X1 mm² (FLEX) with crimp sleeves
  • Two plastic clips with hole M6 black
  • Temperature range - 20° / + 35°C
  • Average life: 30000 operating hours
  • Protection class II, IP 54, IK 07
  • RoHS, WEEE, CE

Length in mm: 301 bis 600 mm
Light colour in Kelvin: 4000 Kelvin
Protection tube: PMMA
Volt : 220-240 Volt

Manufacturer Information

Hersteller: Rohrlux GmbH Elektro-Geräte
Mühlenweg 3, D-26789 Leer (Ostfriesland), Deutschland
Webseite: www.rohrlux.com / E-Mail:  info@rohrlux.com

Manufacturer Website

https://www.rohrlux.com
