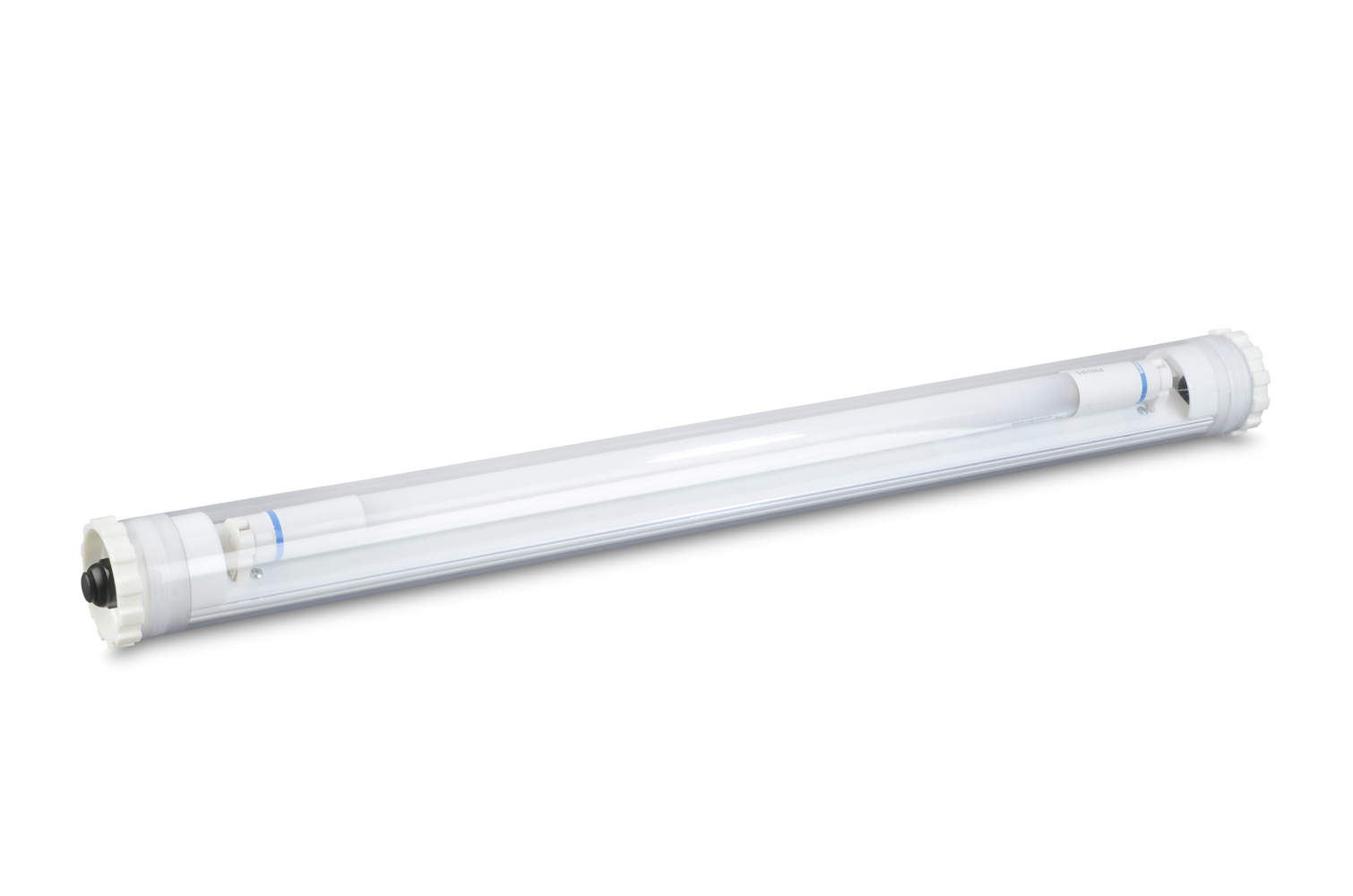

Rohrlux machine light series 35: 733 mm- 11 W T8 LED- 1050 Lm- 220~240 V
€89.25
Product information "Rohrlux machine light series 35: 733 mm- 11 W T8 LED- 1050 Lm- 220~240 V"
Simple, functional, impact resistant.
The tubular luminaire series 35 is a solid luminaire with impact-resistant protective tube made of PC.
It is operated with the most modern LED T8 retrofit tubes from Philips. Convenient, the electronics are part of the light source.
Assembly-friendly for the electricians, the luminaire is connected by quick-connect module and can be mounted as a strip light due to the through-wiring.
Thanks to its tubular design, the Series 35 is dustproof and waterproof (IP67) and can also be used as a damp-proof luminaire.
- Length 733 mm Diameter 68 mm
- Replaceable Philips LED lamp (T8) 11 Watt /840 with integrated electronics 220-240 Volt AC 50-60 Hz
- Light output: 1050 lumen = 1016 lux at 0.5 m = luminous efficacy 105 lm/W
- Beam angle 150° Color temperature 4000 K
- This product contains a light source of energy efficiency class "E" (EPREL registration number: 465199)
- Protective tube made of PC (polycarbonate) clear
- Through-wiring with sealing gasket
- Two brackets H5
- Temperature range - 20° / + 45°C
- Average life: 40000 operating hours
- Protection class I, IP 67
- RoHS, WEEE, CE
| Length in mm: | 601 bis 900 mm |
|---|---|
| Light colour in Kelvin: | 4000 Kelvin |
| Protection tube: | PC (Polycarbonat) klar |
| Volt : | 220-240 Volt |
Manufacturer Information
Webseite: www.rohrlux.com / E-Mail: info@rohrlux.com
Manufacturer Website
https://www.rohrlux.comLogin
Zubehör
Clamp Band width 25 mm with rubber sleeve (black)Diameter 63 mm, 1 partTwoholes 8.5 mm (fastening)Material V4A W5 (1.4571) stainless steel - rustproof
Bracket H9 plastic black with eyebolt For diameter 63 mm
Clamp Band width 25 mm with rubber sleeve (black)Diameter 63 mm, 1 partTwoholes 6.5 mm (fastening)Material steel galvanized
Clamp Band width 20 mmDiameter63 mm 1 partTwoholes 6.5 mm (fastening)Material Steel galvanized
Clamp Band width 20 mmDiameter63 mm 1 partTwoholes 6.5 mm (fastening)Material Steel galvanized
Clamp bandwidth 20mm with rubber sleeve (black), 2 partsLugangled (short) with two holes 6.2mmFordiameter 63-64mmMaterialstainless steel V4A W5
Pipe clamp for diam. 63mmMaterials: Holder PPMaterials:Bracket PVC-UColor: black
Holding force 60Kp diameter 80mmPipe clamp(plastic) for pipe diameter 63mm
Assembly bellows end pieceFortubular luminaires with protection tube diameter = 63 mm bellows and clamp W5ColourwhiteAllows upgrade of luminaires to IP67Is recommended for very harsh conditions
Assembly bellows2xpassage and 1x end piece(for IP67 upgrade)with four clamps W5Fortubular luminaires with protection tube diameter = 63 mm Colour white Allows an upgrade of the luminaires to IP67Is recommended for very rough conditions
Assembly bellows passageFortubular luminaires with protection tube diameter = 63 mm bellows and two clamps W5ColorwhiteAllows upgrade of luminaires to IP67Isrecommended for very harsh conditions
Clamp Bandwidth 15 mmDiameter63 mm 1 partBore6 mm (fastening)Material V2A
For tube lights with protective tube diameter = 63 mm
Bracket H9 plastic black with eyebolt and velcro strap with snap hookFordiameter 63 mm
Standard bracket included in delivery Tube lights series 30/31/32/35Material : Polypropylene (PP)Colour : White
